Import of Measured Lens Surface Data

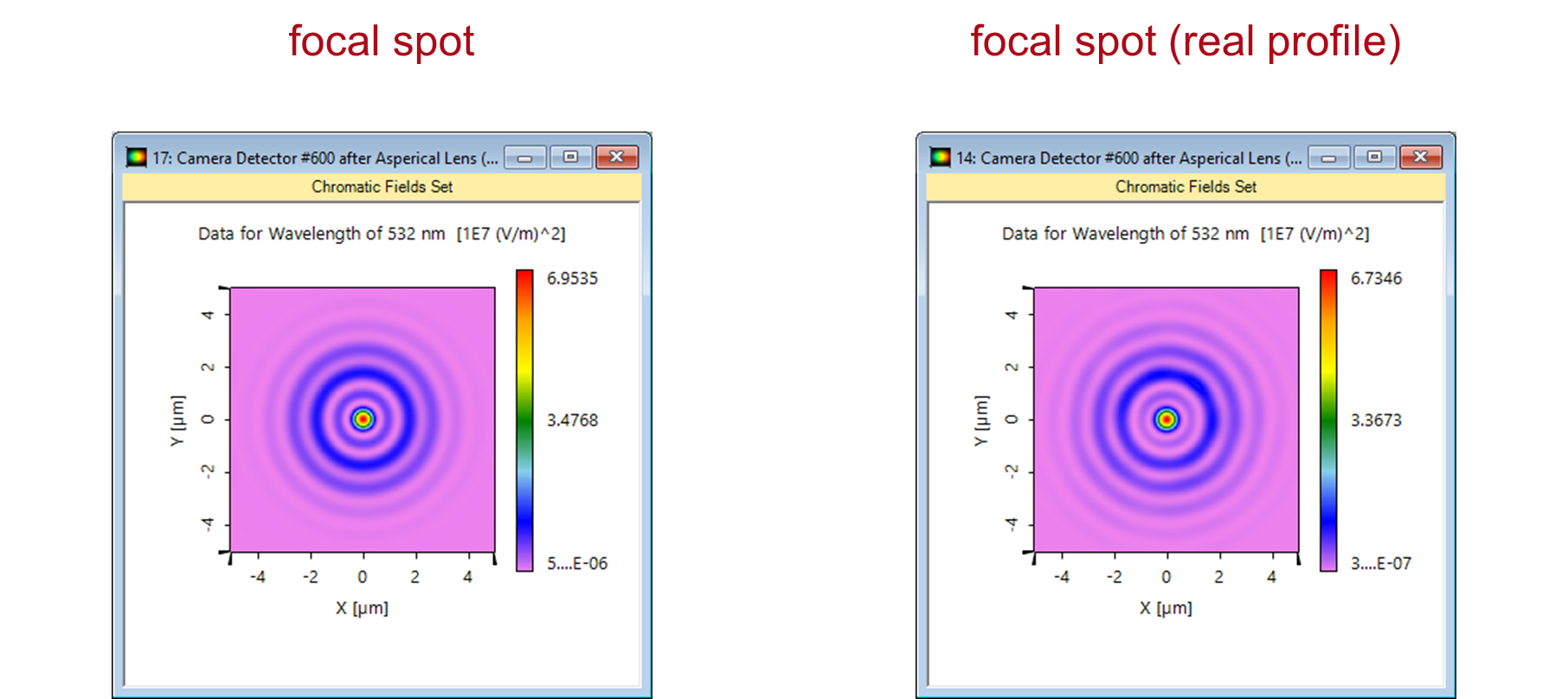

Even for Lenses that are manufactured with high precision, the shape of the lens will differ from the ideal desired shape. This deviation has an influence on the performance of an optical system and the effect should be evaluated. The real difference can be obtained by a non-contact measurement e.g. with a 3D optical profiler instrument. The measured data has to be imported to the simulation software, what is shown in this demonstration.
