Gratings in Complex Optical Systems

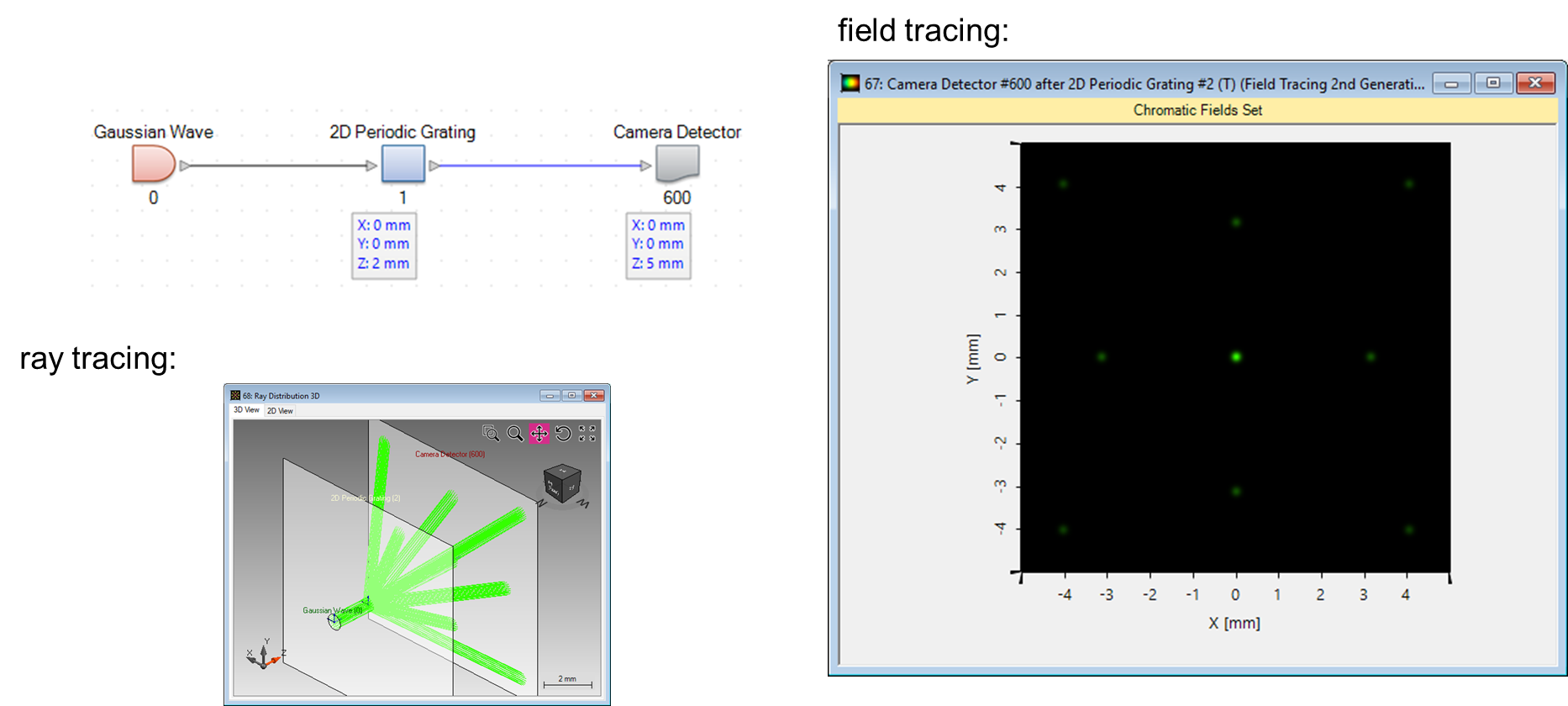

VirtualLab Fusion is capable of simulating light propagation of any kind of light source through a periodic microstructure. The microstructures are analyzed rigorously in order to calculate accurate diffraction efficiencies for structure sizes in the range of the used wavelength. For larger structures, thin element approximation can be applied in order to reduce the numerical effort.
- Demo (PDF) pdf 25.05.20
- Demo and sample files in VirtualLab Fusion (ZIP) zip 25.05.20
