How to Format VirtualLab Fusion Results

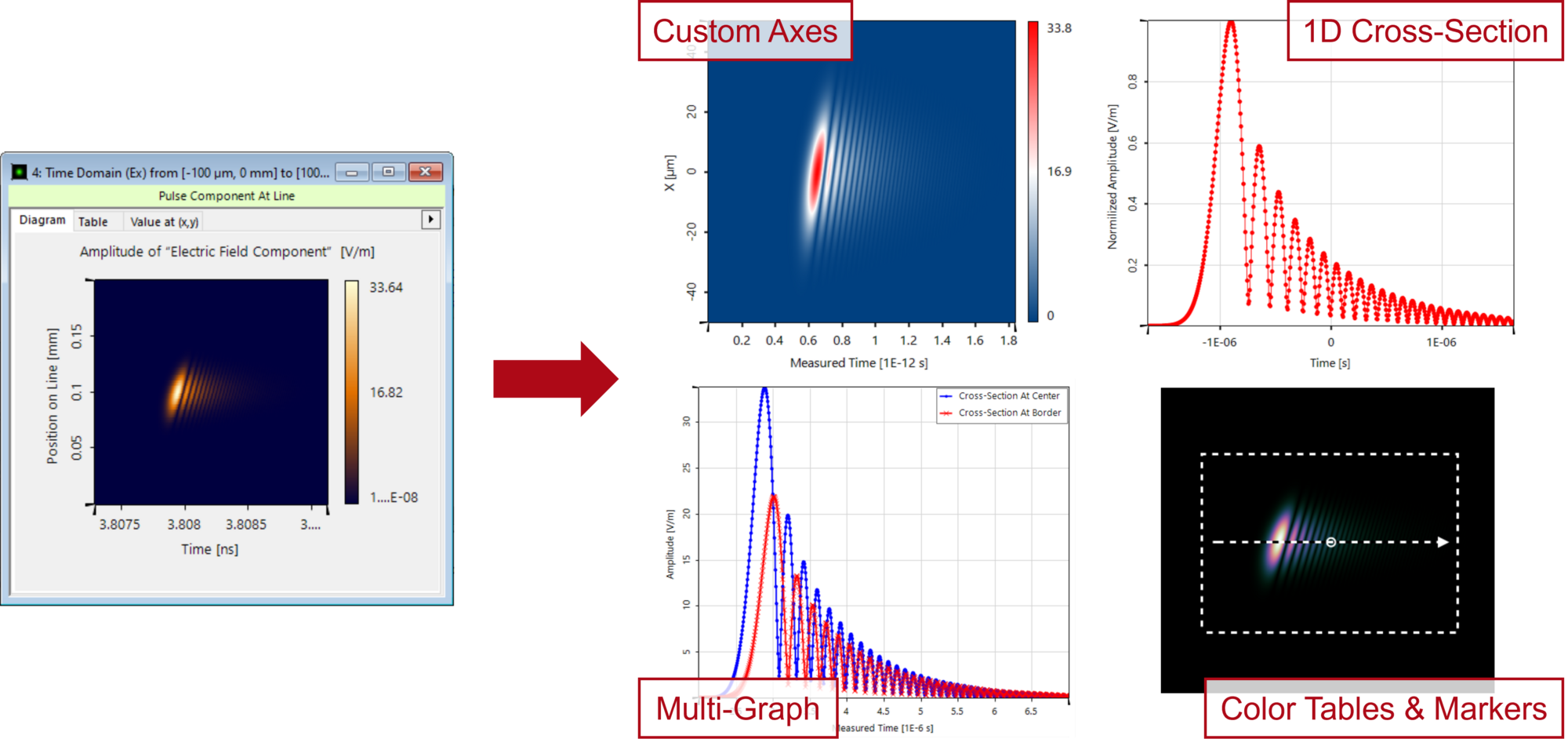

While providing handy tools to obtain fast and accurate results for a desired optical task is the main purpose of any optical simulation software, the value of a versatile post processing should not be underestimated. The adaption of the appearance of the resulting data enables to either fit specific requirements for a publication in a journal or reports, but moreover to emphasize and highlight interesting aspects of the results. In this Use Case different options for the customization of detector results in VirtualLab Fusion are demonstrated. These tools can be utilized for usual 2D field representations, but also for 1D cross-sectional data and multi-graphs.
