Export Systems and Components into STL & IGES Format

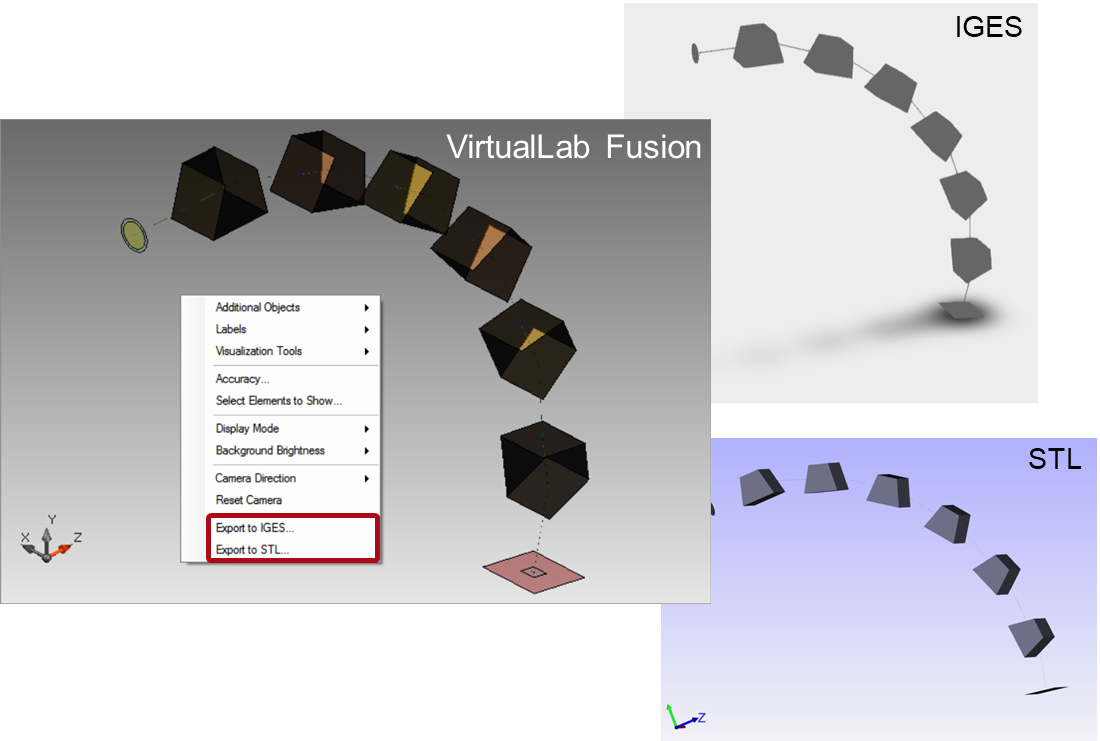

Computer Aided Design files are often used to exchange files between software products. STL format for example is used in 3D printing software. IGES format is widely used for the digital exchange of information in the field of Computer-Aided Design (CAD). VirtualLab Fusion supports the export of optical components specified in the system into various CAD formats. This includes for example the export of lenses, prisms, mirror systems and other components into STL and in IGES format.
- Use Case (PDF) pdf 14.11.22
- Use Case and sample files in VirtualLab Fusion (ZIP) zip 14.11.22
